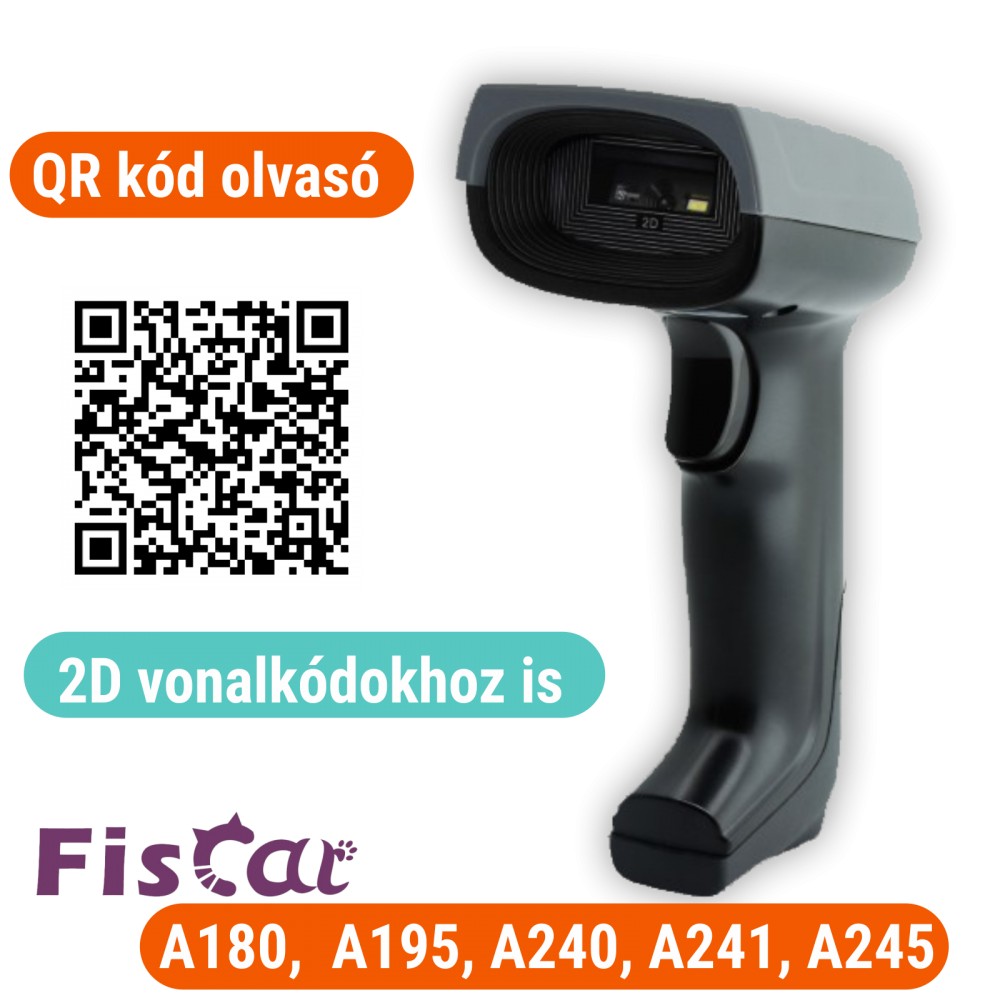

2D vonalkódolvasó (QR kódos) Fiscat/CashBox pénztárgépekhez (A195, A240, A241, A245, A265) Serial

Technical Parameter

Model

X-760E

Item

Wired 2D Barcode Scanner

Physical Parameter

Material

ABS+PC

Power Supply

DC 5V ±5%

Power Consumption

952mW(working); 512mW(standby); 1105mW(maximum)

Weight

123.0g±5g(Without cable)

Size

L*W*H: 161.5 * 77.0 * 88.0(unit: mm)

Color

Grayish white;Black

Performance Parameter

Interface

RS232

System Supported

Linux, Android, Windows XP7, 8, 10, MAC

Language Supported

US English; Belgium; Finland; France; Germany; Italy; Sweden; United Kingdom; Denmark; Norway; Spain; Portugal; Turkey F; Turkey Q; Japan;

Sensor

Planar CMOS sensor

Light Source

Red LED(Aiming)+White LED(lighting)

Processor

32-bit ARM MCU +  BGA

Motion tolerance

 QR: 25cm/sec

Resolution

5mil

Bit Error Rate

1/5000000

Reading Mode


Trigger Mode

Manual; Continuous sensing; Auto-sensing

Prompt Mode

Buzzer, Indicator Light(LED)

Print Contrast

25%

Decoding
 Capability

1D

          Code25-Interleaved               Code25-Standard             Code25-Matri
          Code39-Regular                   Code39-FullASCII              Code32
          Code93-Regular                   Code93-FullASCII              Code128
          EAN/GSL/UCC-128Auto       Codabar                             MSI
          EAN/JAN-13                          UPC-A                                JAN-8
          Code11                                 UPCE0

2D

     Data Matrix                           QR                                    PDF417
     Maxcode                              Aztec                                 Hanxin

Scanning Angel

Roll360°,Pitch45°,Yew45°

Scanning Depth

                  Code39 10mil: 6cm  -  25cm
                      QR 10mil: 4cm  -  25cm

Environment Parameter

IP Grade

IP52

Operating Temp.

0 to 50℃ / 32 to 122℉

Storage Temp.

0 to 50℃ / 32 to 122℉

Operating Humidity

20% to 85%(No Condensation)

Storage Humidity

20% to 85%(No Condensation)

ESD Protection

15KV air discharge

Shock Resistance

1.5m free fall on concrete surface
